ASSEMBLY TABLE

ASSEMBLY TABLE

The injection moulded wax patterns are assembled into trees or clusters on the Pattern Assembly Tables. This important operation primarily involves manual labour with reasonable skills. It is necessary to provide good working facility, proper tools and worker comfort to ensure quality output and good productivity.

The injection moulded wax patterns are assembled into trees or clusters on the Pattern Assembly Tables. This important operation primarily involves manual labour with reasonable skills.

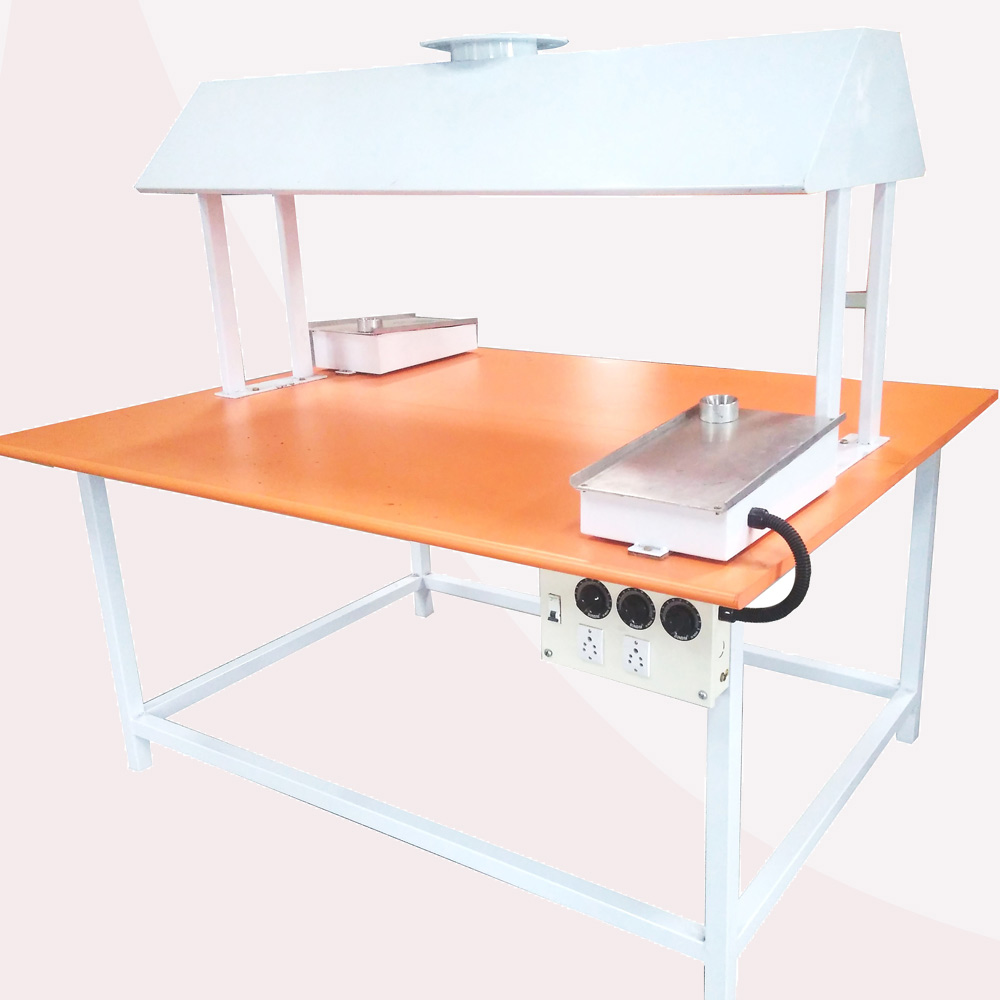

Assembly Table

Assembly Table

It is necessary to provide good working facility, proper tools and worker comfort to ensure quality output and good productivity.

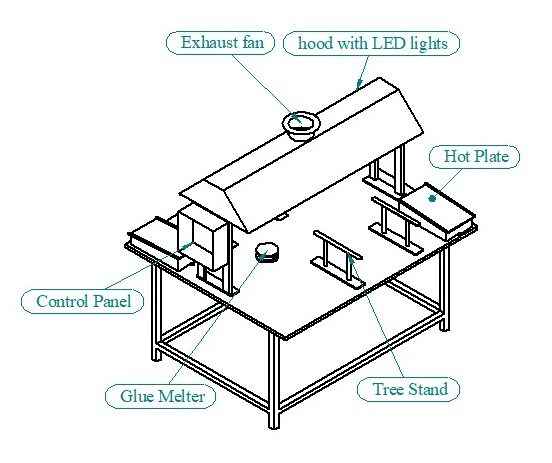

The Assembly tables are equipped with an SS cladded ply-board table surface, Two Nos. Temperature regulated Hot Plate-Glue melter combo units and 4Nos wax welding guns.
Operator comfort is ensured with a hood and exhaust fan for fume extraction, proper bright lighting and an ergonomic control panel.

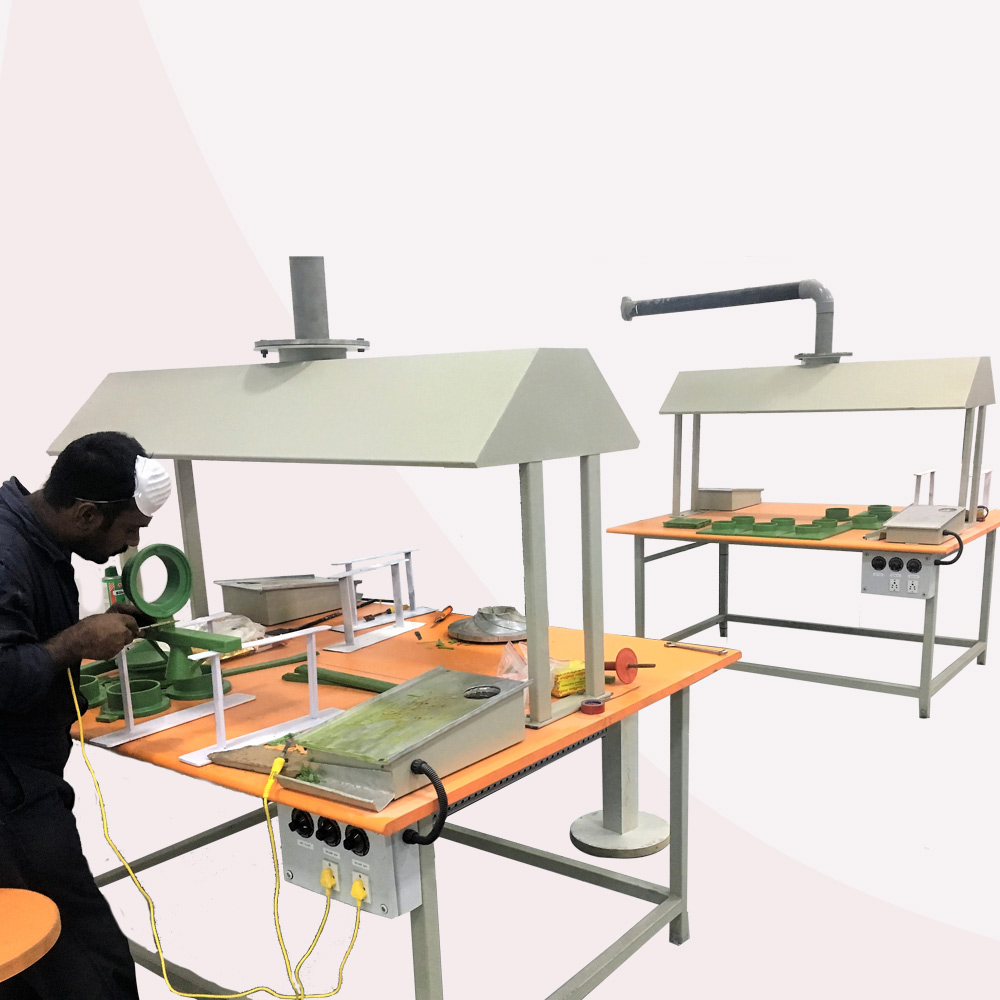

Assembly Table

Assembly Table
